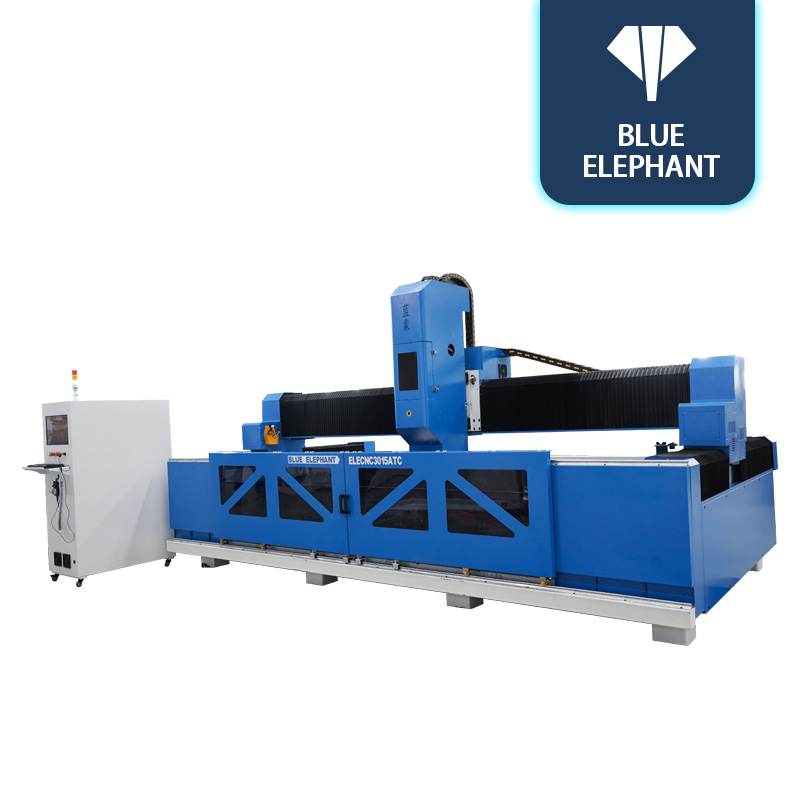

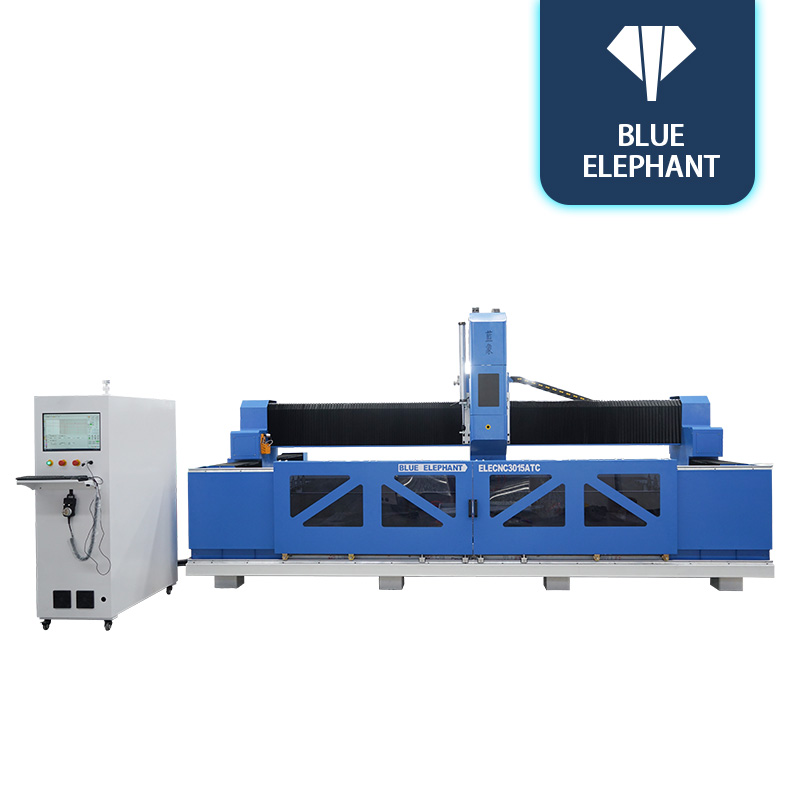

Quartz countertop machining center
The quartz stone countertop machining center adopts the mechanical Jianchun spindle, the new generation 6MB system and Yaskawa motor, with high accuracy and stability;
Features
The quartz stone countertop machining center adopts the mechanical Jianchun spindle, the new generation 6MB system and Yaskawa motor, with high accuracy and stability.
the countertop is made of phenolic board hard tabletop and 8 suction cups, which has high stability during processing.

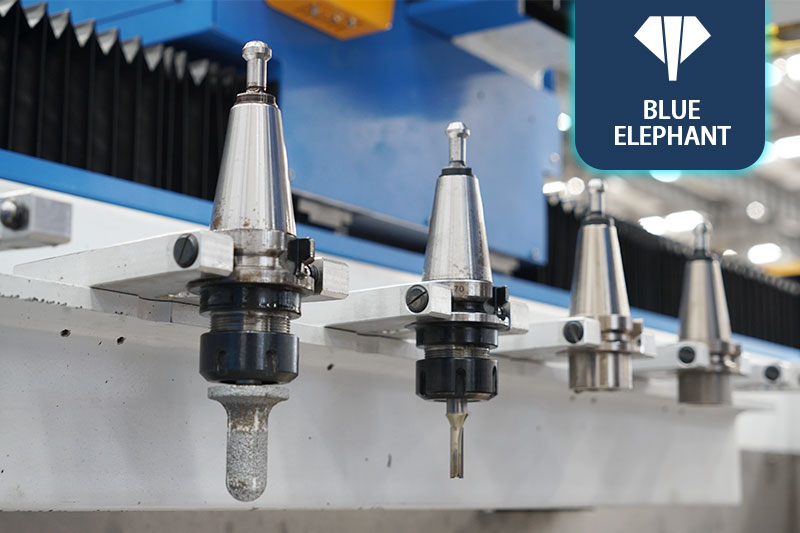

12 tool magazines are arranged in a row , placed on both sides of the bed, it is convenient to process and change the tool and save the time for tool change; the newly designed stone machine body has good bearing capacity and long-term processing without deformation.
The wash basins and tea trays on the stone countertops are processed by hollowing, carving, chamfering, polishing and edging, so as to reduce the tool change time and waste generation, improve the utilization rate of plates, and can also process murals, background wall lettering, relief, hollowing out Wait.
Parameters
Product name and model | 3015 Quartz Stone Processing Center |
machine color | white blue |
working area | 3000*1500*400mm |
Tool magazine type | 12 tool magazines in a row |
system | Weihong Stone Processing Center System |
Chassis Voltage/Frequency | 380v, 3ph, 50hz |

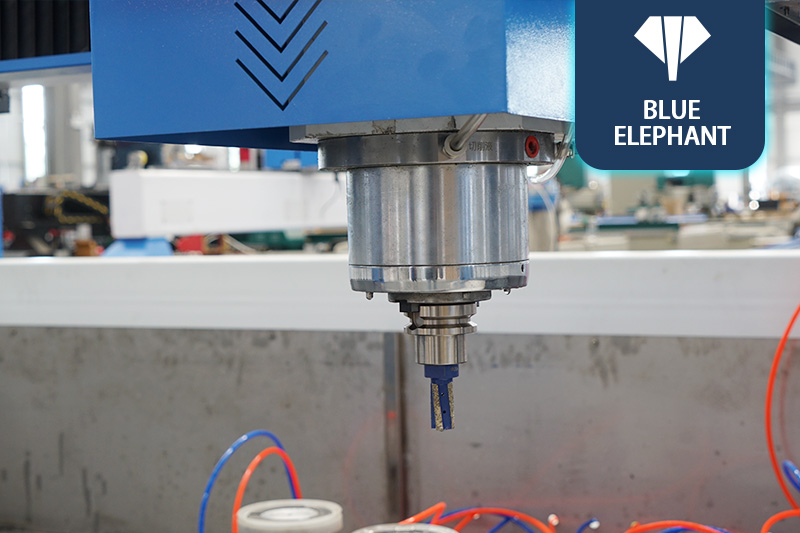

Spindle | Jianchun Machinery Center Water Outlet Spindle |
Spindle cover (sheet metal) | yes, blue |
Inverter | 7.5kw super synchronous spindle servo motor |
Motors and Drives | Yaskawa, Japan |
reducer | Xinbao reducer |
bed structure | Newly designed stone machine body |
Countertop Structural Requirements | Phenolic board hard table plus 8 suction cups |
side panel type | Welded side panels |
guide | Taiwan PMI |
Rack/Module | Taiwan Jingte helical gear |
Machine dustproof type | XY dust cloth |
Limited brand | Limit switch |

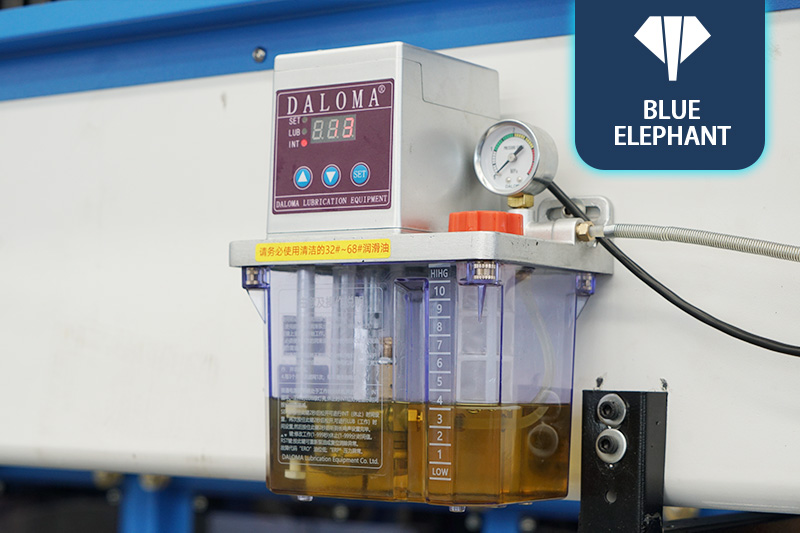

Lubrication system | Electric gear pump |
spray/sink | Center spray + ring spray + sink |
positioning cylinder | X4Y2 |
knife | automatic tool setting |
Chassis (type, color) | Rittal chassis white |
