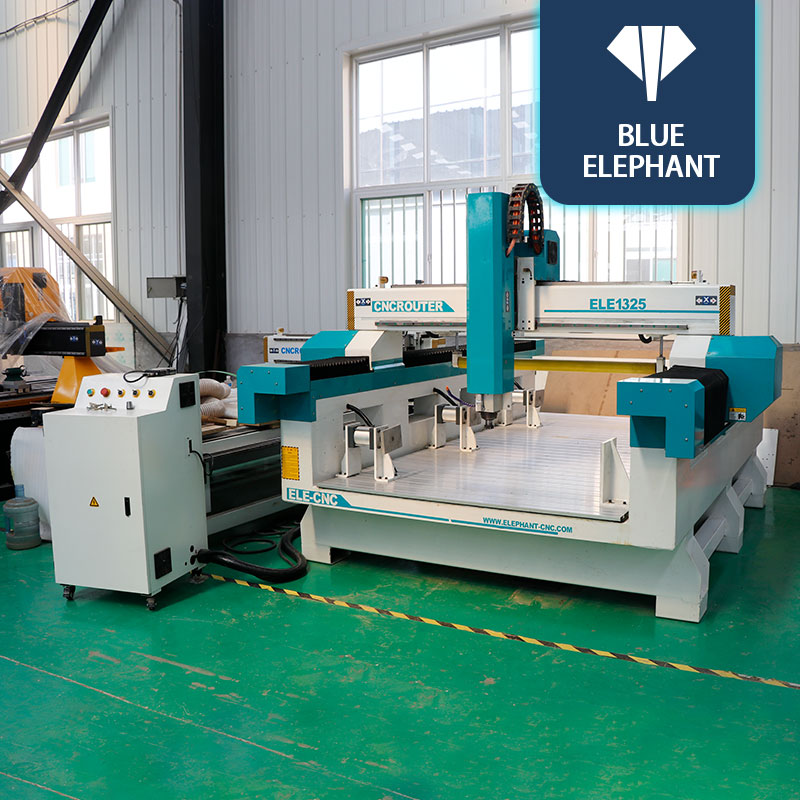

1325 Polyflor Machining Center
The Z-axis can be heightened according to your requirements, and the entire working size can also be customized.
Features
The Z-axis can be heightened according to your requirements, and the entire working size can also be customized.
the original Italian HSD spindle.
the Japanese Yaskawa servo system is used, with high precision and large torque.
the machine adopts the pressure roller design, which can keep the machine stationary during processing.
Parameters
| Product name and model | ELE1325 |
| machine color | White bed, mint green sheet metal |
| working area | 1300*2500*400mm |
| countertop structure | T-slot T-slot parallel to X axis |
| Chassis Voltage/Frequency | 380V3phase 50HZ |
| system | DSP A11 |
| Spindle | Italian HSD |
| Inverter | 7.5KW Delta |
| Motors and Drives | Yaskawa Servo |
| guide | Silver #25 |
| Lubrication system | manual |
| Gantry structure | Gantry Mobile |
| spray/sink | automatic fuel injection |
| bed structure | big square tube sinking |
| rack | have |
| knife | Simple knife setting |
| lead screw | TBI lead screw |
| Chassis | Independent single side |
